Super Finishing Machine
Leading Manufacturers, Wholesaler and Retailer of Elliptical Super Finishing Machine – Sft 100 Spm Vertial, Manual Feed Super Finishing, Sft 100 H. – Horizontal Elliptical Super Finishing Machine, Shaft Finishing Machine, Super Finishing Attachment HT 50, Through Feed Super Finishing Machines and Through Feed Superfinishing Machine from Mumbai.
| Business Type | Manufacturer, Supplier, Retailer |
| Color | Blue |
| Condition | New |
| Power | 9-12kw,2 HP |
| Type | Super |
| Country of Origin | India |
| Application | Finishing Metal |
| Business Type | Manufacturer, Supplier, Retailer |
| Color | Blue |
| Condition | New |
| Automatic Grade | Manual |
| Power | 9-12kw |
| Application | Finishing Metal |
| Type | Super Finishing Machine |
| Warranty | 2years |
| Country of Origin | India |
| Max Diameter | 200 mm |
| Total Power | 15 kW |

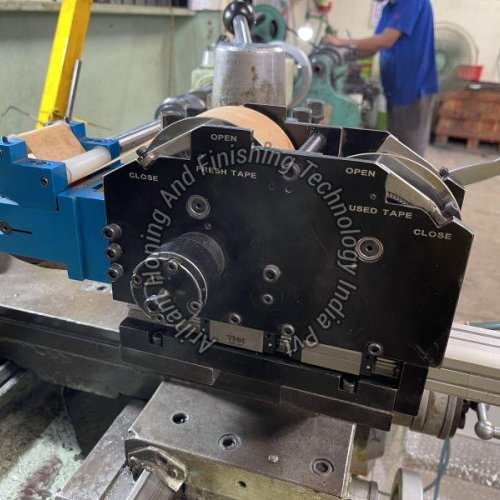

Manual Feed Super Finishing
| Business Type | Manufacturer, Supplier |
| Country of Origin | India,Made in India |
| Color | Blue |
| Blind Type | Horizontal |
| Quality | Good |

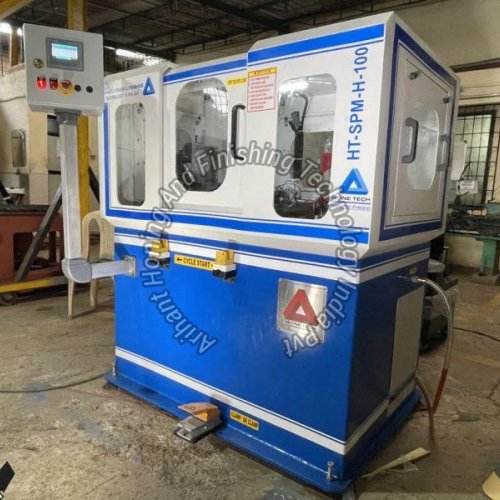

Sft 100 H. – Horizontal Elliptical Super Finishing Machine
| Business Type | Manufacturer, Supplier, Retailer |
| Details |  View |
| Power | 1-3kw,15 kW |
| Between Centre | 500 / 750 / 1000 / 1500mm |
| Max Diameter | 200 mm |
| Spindle | Servo |
| Axis | Servo |
| Pneumatic | 5 bar |
The Shaft -Fin Series entails a modern and trendsetting system with numerous improvements for prototypes. The new design ensures highest quality while significantly reducing idle times. Extra-large, quickly changeable tape cassettes are easily accessible and change over times reduced to a minimum. Intelligently designed tooling units permit the machining of shafts with journal distances of just 33 mm and lengths of up to 1600 mm Flexible configuration options ensure that a broad range of part specifications can be met.
| Business Type | Manufacturer, Supplier, Retailer |
| Details | View |

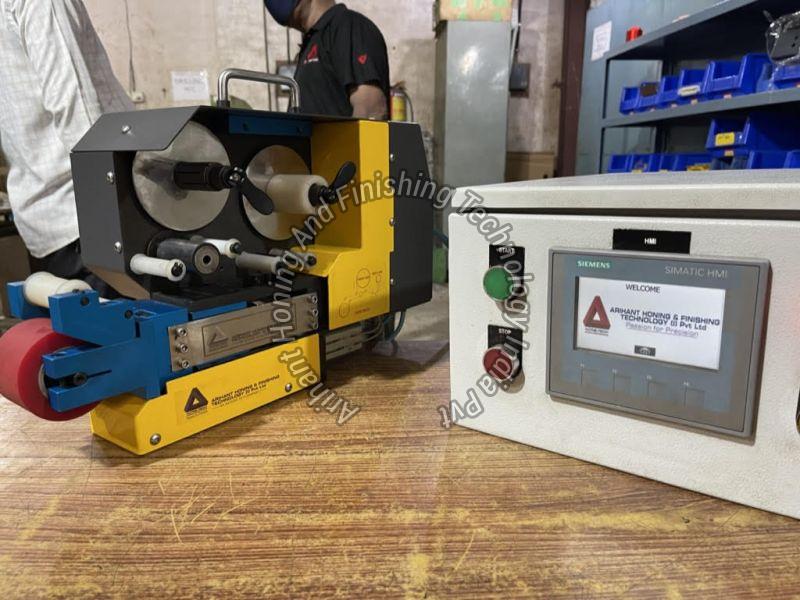

| Model | Ht-50 |
| Amplitude in Mm | +/-1.5 |
| Air Pressure in Bar Max | 6 |
| unit weight in kg | 13 |
| contact stroke in mm | 60 |
| automated tape feed | 10-50 mm/min. |
| Business Type | Manufacturer, Supplier, Retailer |
| Condition | New |

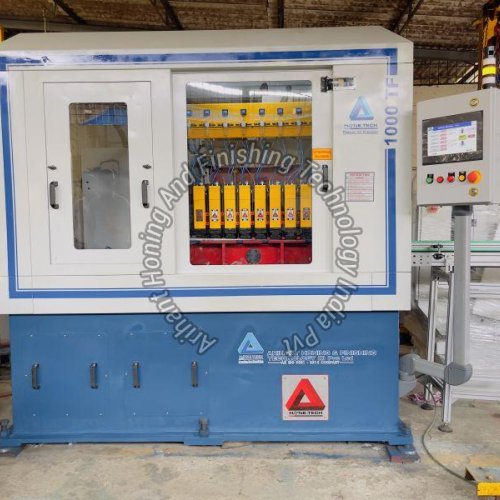

| Model | Hone-Tech 1000 TF NC |
| Roller Diameter | 125 mm |
| Roller length | 1000 mm |
| Min Component Dia | 15 mm |
| Max Component Dia | 50 mm |
| Max Component Length | 200mm |
| Roller Rpm | 5 Hp |
| Drive trough | Timer belt and Pulley |
| Oscillation | 1 – 5 mm |
| Oscillation through | Servo and Eccentric / Pneumatic |
| Oscillation Speed | 400 to 800 single strokes |
| Number of expansion | 8 |
| Expansion pressure | Servo Valves |
| Feed rate | 4.5 meters per minutes max |
| Total kW | 10 kW |
| Business Type | Manufacturer, Supplier, Retailer |
| Details | View |
| Workpiece diameter | 5-30mm (for 500TF), 8-60mm (for 1200TF) |
| Workpiece lenght | upto 100mm (for 500TF), upto 400mm (for 1200TF) |
Arihant's Throughfeed Superfinishing systems largely used in the centerless finishing of rods, piston pins, shock absorber rods etc. ar a speed of 5 meters per minutes, this machine can reach a finish up to 0.2 Rz. this process also can improve the roundness by up to 80% depending on the number of lobes.
